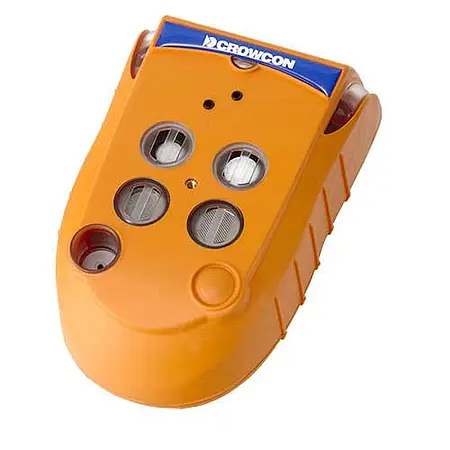

Air Quality Meter Gas-Pro-2

Gas-Pro-2 merupakan perangkat pengukur kualitas udara yang ringkas dan mudah dibawa, diciptakan untuk mendeteksi lima macam gas seperti CO, CO2, H2S, O2, dan CH4. Berkat ketepatan tinggi dan rancangan tanpa pompa di dalamnya, alat ini sangat cocok digunakan di berbagai sektor industri, antara lain pengelolaan limbah, kilang minyak, atau lokasi landfill. Cara kerjanya menggunakan sensor khusus yang dapat mengenali kadar gas secara langsung, dengan penyimpanan data setiap 10 detik di memori internal. Kemampuan bekerja hingga 19 jam tanpa pompa menjadikannya dapat diandalkan untuk pemantauan dalam waktu lama.

Rancangan Gas-Pro-2 menekankan kemudahan pemakaian dengan tampilan “top mount” yang jelas terbaca bahkan di tempat sempit. Navigasi menu satu tombol memungkinkan pengaturan melalui klik atau double-click, sesuai untuk pekerja yang memakai sarung tangan. Keunggulan utamanya adalah indikator “Positive Safety” memakai LED tiga warna, menerapkan sistem traffic light untuk status alat: hijau (siap digunakan), kuning (perlu kalibrasi standar), dan merah (perlu perbaikan). Peringatan visual, suara (95 dB), dan getaran memastikan notifikasi darurat mudah terdeteksi.

Perangkat ini dilengkapi pompa internal opsional untuk mengambil contoh gas, meski ukurannya kecil. Gas-Pro-2 juga memungkinkan integrasi dengan docking station atau kabel antarmuka guna memindahkan data ke komputer, termasuk rekaman 1000 kejadian seperti alarm atau kalibrasi. Dilengkapi sertifikasi kalibrasi standar, alat ini memenuhi tuntutan industri manufaktur yang memerlukan pengawasan gas secara berkelanjutan.

Penerapan Gas-Pro-2 meliputi lokasi berbahaya seperti pabrik kimia, pelabuhan, atau instalasi pengolahan air limbah. Ukurannya yang kecil dan klip pengait yang kuat memudahkan pemasangan pada pakaian kerja. Bagi industri yang memerlukan fleksibilitas lebih, tersedia pilihan tambahan seperti pengisi daya mobil 12V atau pompa motor internal. Fitur-fitur ini menjadikannya solusi multifungsi untuk tim tanggap darurat seperti petugas pemadam kebakaran.

Dukungan purnajual meliputi layanan kalibrasi rutin setiap enam bulan dan ketersediaan sensor pengganti sesuai kebutuhan. Dengan gabungan portabilitas, antarmuka yang mudah dipahami, dan ketahanan baterai yang lama, Gas-Pro-2 merupakan pilihan tepat untuk menjamin keamanan pekerja di lingkungan industri. Informasi lebih detail dapat diakses melalui layanan pelanggan untuk wilayah UK dan US. Untuk keterangan lanjut dan konsultasi gratis terkait produk ini, hubungi kami di WhatsApp 6285159691822 atau email marketing@jvm.co.id. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga bersaing.

– Acoustic alarm (95 DB) – Optical alarm (two LED lights red/blue) – Gas indicator with vibration alarm – Extremely simple handling – Head mounted display – “Positive Safety” display red/yellow/green – Diffusion or pump mode – Impact resistant synthetic rubberized – LCD with lights – Intrinsic safety allows wearing in ex-range – Frequent “OK” control beep – Gas detector monitors a maximum of 5 different gases simultaneously – Water and dust resistant IP 65 /67 – Gas detector with data logger function – Fully automated calibration with optional purchasable I-test station

Technical specifications
Typical measuring ranges and alarm settings
Parameter / gas	Symbol	Range	Steps
Flammable gases *	LEL (catalytic)	0… 100% LEL	1%
Dioxide	O2	0… 25 Vol.%	0.1%
Carbon dioxide	CO2	0… 5 Vol.%	0.01%
Carbon monoxide Hydrogen sulfide**	CO/H2S	(CO) 0…500 ppm (H2S) 0…100 ppm	(CO) 1 ppm (H2S) 0,1 ppm
Other gas sensors available upon request. Please email jmu@pce-instruments.com (UK) or jwe@pce-instruments.com (US) for details.
Ammonia	NH3	0… 100 ppm	1 ppm
Sulfur dioxide	SO2	0… 10 ppm	0.1 ppm
Ozone	O3	0… 1 ppm	0.01 ppm
Chlorine	CI2	0… 100 ppm	0.1 ppm
Chlorine dioxide	CIO2	0… 1 ppm	0.01 ppm
Nitrogen monoxide	NO	0… 1000 ppm	1 ppm
Nitrogen dioxide	NO2	0… 100 ppm	0.1 ppm
Flammable gases	LEL (infrared)	0… 100 % LEL	1%
* Standardized calibration to methane, butane, pentane, ethylene and more on demand.
** Combined sensor
Acoustic alarm signal of gas detector		95 dB (A)Frequent control signal, disengageable
Optic alarm		Extra bright LED’s, red /blue flash, visible from every sight angle
Vibration alarm		Additionally to optic and acoustic warning, device vibrates
Display		Bright head mounted display, two-colored, switches in case of alarm from green to red
Data storage		50 hours at 10 sec. interval
Power supply		Lithium ion batteryApprox. 19 hours in diffusion modeApprox. 17 hrs. in pump mode
Enclosure type of gas detector		IP 67/ 65
Dimensions		5.1 x 3.2 x 1.7 in / 130 x 82 x 43 mm (H x B x D)
Weight		< 1 lb / 380 g
Surrounding conditions		-20°F… 122°F / -20… 50 °C 20… 90 % rH non condensing
Standards / codes		EN 60079-29, EN 45544, EN 50104 EN 50270, EN 50271 EN 61779
Certification of gas detector		ATEX – II 2G Ex ia d IIC T4 Gb IECEx – Ex ia d IIC T4 UL: Class 1, Div 1, Groups A, B, C, D cUL: Class 1, Div 1, Groups A, B, C, D
PC interface		USB interface device specific
Attention: According to ATEX and BG guidelines (T021 and T023), all mobile gas detector devices have to undergo a sight check and display control before use or at least once a day. Our technicians and engineers will gladly advise you regarding the necessary test gases and discharge units. Please call PCE Instruments technical support for assistance.
Maintenance and recalibration: The gas detector can be sent to us for purposes of maintenance and calibration (e.g. biannually). The gas detector will then be dismounted, cleaned and recalibrated. If a sensor of the gas detector should not be calibrateable any more or its life time expired we will first inform you. Reserve sensors are also available.
This gas detector is ATEX approved. What does it mean?: The ATEX production directives (commonly known as “ATEX 95” because of art. 95 of the EU directives) by theEuropean Parliament for gas detectors and protection systems for appropriate operation in areas with explosive risks determines the terms for application of a product that is used in those areas. The directives covers in attachment II the basic health- and security requirements that have to be followed by the producer and then to be confirmed by an accordant procedure to evaluate the conformity. Our gas detector achieves all current standards by the EU.

1 x Air Quality Meter Gas-Pro-2 (with internal pump)1 x Battery charger1 x Alligator clip with eyelet1 x Instruction manual1 x Calibration certificate1 x Suction cap as well as sample pipe (suctioning version)Additional equipment optional- Reserve gas sensors for gas detector only on demand – Vehicle charging stand for gas detector (12 V, especially favored by fire fighters) – Internal motor suctioning pump – Fully automatic calibration I-test – Biannual maintenance and calibration of gas detector including calibration certificate by producer – Test gas and discharge unit
